Model 15F Farm Implement Truck Hitch

Farm Implement Fifth Wheel Wrecker Category 3 Tow Hitch

Features:
35,000 capacity
CAT III Quick Hitch & Draw Bar
Galvanized Finish
Remote Control Actuator

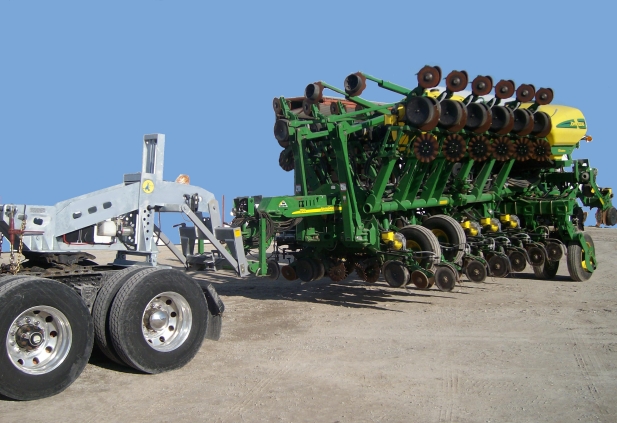

Farm Implement Fifth Wheel Wrecker Category 3 Tow Hitch


Essential for farm implement dealers. Makes delivery of the largest implements a breeze! Utilize any standard fifth wheel tractor. Installs in minutes and can be removed just as quickly if the tractor is needed for another job.

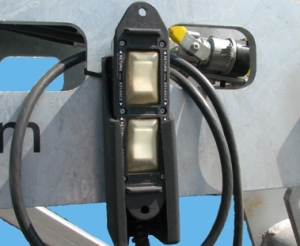

pioneer valve4-way remote control

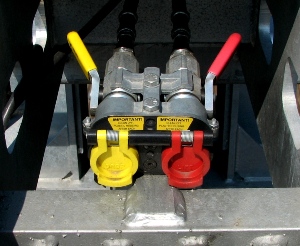

Deluxe Model Features Auxiliary Hydraulics

Pioneer Fittings mounted to the rear of the unit provide hydraulic power to operate implements before being connected. The custom 4-way remote pendant controls the hitch or implement independently with the touch of a button.


Draw Bar

Versatile Draw Bar Features Dual Removable Tangs

Accommodate multiple implement and other apparatuses with this multi-use setup.  Configurable to just about any situation. Two removable HD tangs feature 1.25" holes for pin insertion. Use one or both or custom build utilizing the existing configuration.  (Shown here with the optional Kinze modification allowing draw bar removal for Kinze nose protrusion.)

Upper Tang - 3" wide X 1" Thick
Lower Tang - 3" wide X 1.62" Thick
Rated 7500lb Tongue Weight
Rated 20,000lb Towing Capacity

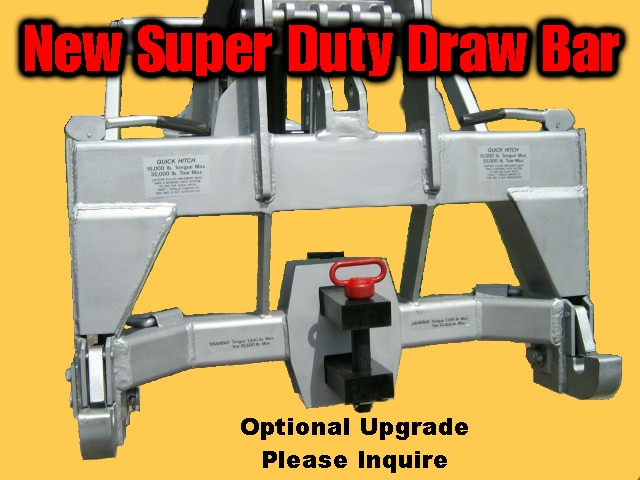

Ag Hitch draw bar Fifth wheel implement towing

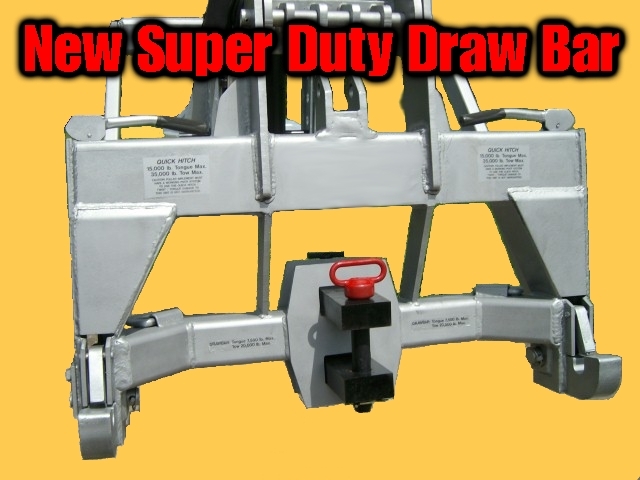

Upgrade your draw bar to full 35,000lb towing capacity with the NEW optional Super-Duty Draw Bar. Features dual 2"X4" Removable tangs and 1.5" hitch pin. The set back configuration accommodates Kinze 2 point hitches with protruding noses and any future similiar designs from other manufacturers.

Upper Tang - 4" wide X 2" Thick
Lower Tang - 4" wide X 2" Thick
Rated 10,000lb Tongue Weight
Rated 35,000lb Towing Capacity
